Why Do Multimeters Show a Small Amount of Voltage Even When Not Connected to Anything?

If you've ever noticed your multimeter displaying small amounts of voltage reading when it’s not connected to anything, you’re not alone. This phenomenon is common and often confuses beginners. Let’s dive into the reasons behind this seemingly odd behavior.

Reasons

       1. Stray Capacitance

One of the main culprits for these unexpected voltage readings is stray capacitance. Capacitance refers to the ability of a system to store an electrical charge. Even in an open circuit where your multimeter isn’t connected to any power source, it can pick up small amounts of electric charge from the surrounding environment. This stray capacitance, although minute, is enough to register a small voltage on your multimeter, especially if it is set up at millivolts (mV).

       2. High Input Impedance

Digital multimeters typically have a high input impedance, often in the range of megaohms (MΩ). This high impedance means that the multimeter doesn’t load the circuit it's measuring. However, it also makes the device more sensitive to small voltages, often called “Ghost Voltage”, caused by ambient electromagnetic fields. These fields can come from nearby electrical devices, wiring, or even the human body.

       3. Electromagnetic Interference (EMI)

Electromagnetic Interference (EMI) is another factor that can cause your multimeter to show small amounts of voltage. EMI is all around us, generated by power lines, radios, microwaves, and even cell phones. Because of the high input impedance, the multimeter can detect these low-level electromagnetic fields, which it interprets as a small voltage.

       4. Floating Inputs

When the multimeter's probes are not connected to a circuit, they are said to be "floating." Floating inputs are highly susceptible to picking up small voltages from the environment. This is why you might see a fluctuating or small steady voltage reading on the display.

       5. Residual Charge

Sometimes, the multimeter's internal circuitry can retain a small residual charge from previous measurements. This charge can cause a small voltage reading even when the probes are not connected to any power source.

What Can You Do?

To ensure accurate measurements and eliminate these small, misleading voltage readings, you can take the following steps:

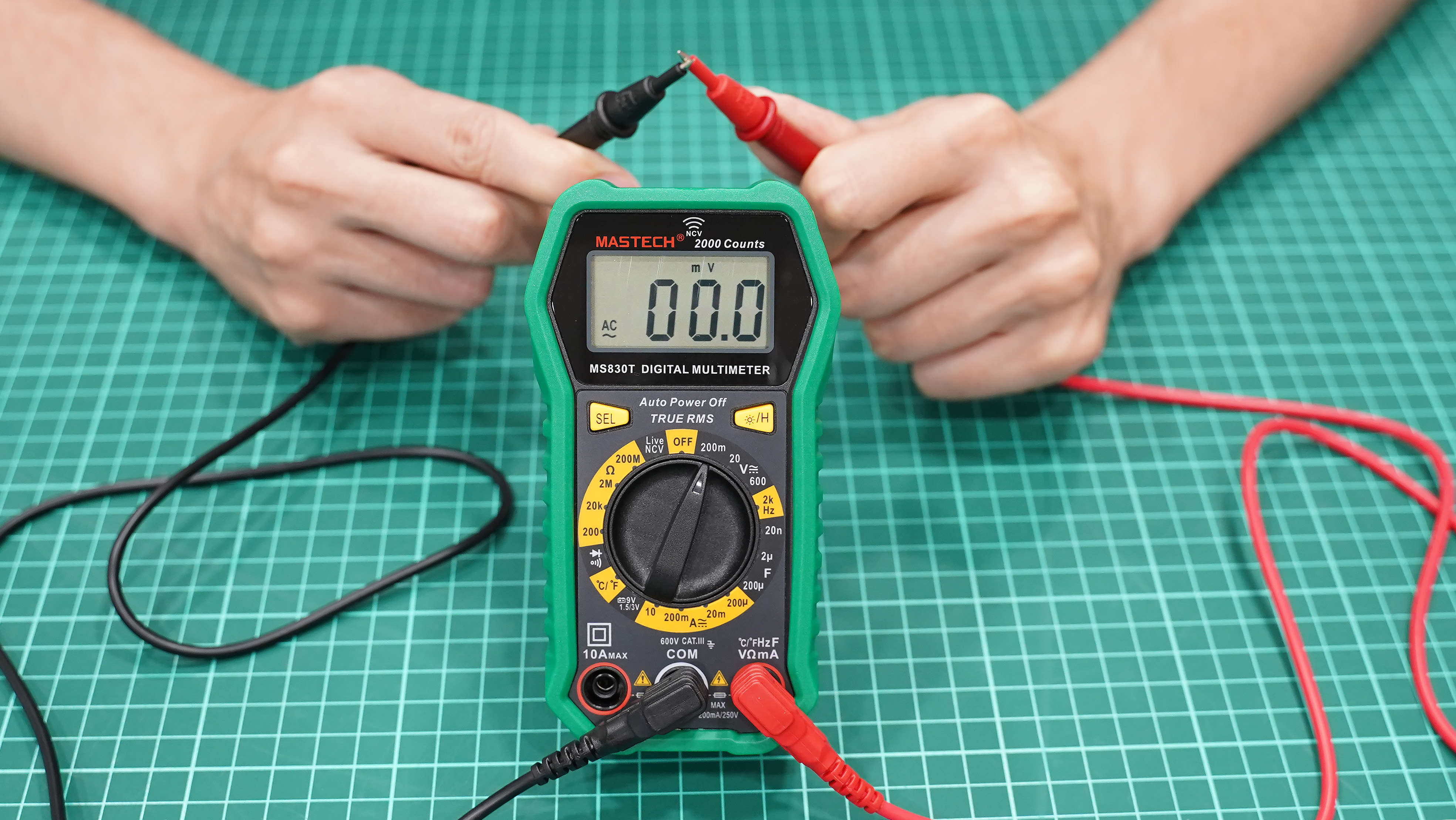

• Short the probes together: By touching the two probes together, you discharge any stored capacitance and remove the influence of stray electromagnetic fields, causing the reading to drop to zero.

• Use shielded cables: If you’re working in an environment with a lot of EMI, using shielded cables can reduce the interference picked up by the multimeter.
• Check the multimeter settings: Make sure the multimeter is set to the appropriate range and function for your measurements.

In most cases, these small voltage readings are nothing to worry about, but understanding the reasons behind them can help you make more accurate measurements and prevent confusion during your work.
